1、概述：

適合鋼絲繩定長熔斷、切斷、打花，長度精準打花尺寸穩定，軟性鋼絲繩也可以適用。

2、設備規格以及功能：

加工規格：φ1.0mm-2.5mm長度200mm-2500mm ;長度可定制

節拍：1出4根 7-9S/次;

電壓：三相四線(380+N) 功率：3.5 KW

外形尺寸：3800x850x1800mm; 重量：1350Kg.

功能：數控系統控制整機動作，長度任意設定，6種工作模式任意切換，剝皮長度打花尺寸可調;

專利編號：2021106621320

(可定制)

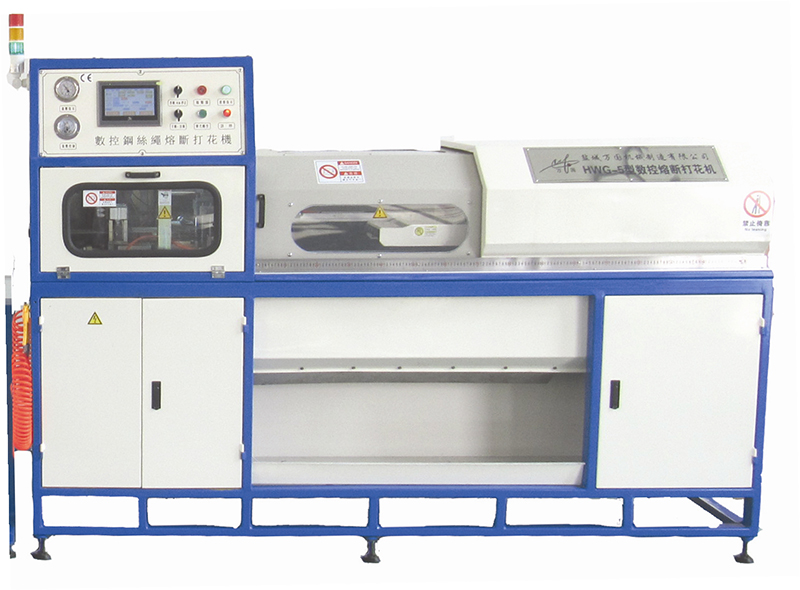

1. Overview:

It is suitable for cutting, peeling and patterning of plastic coated steel wire rope with fixed length, precise length and stable patterning size.

2. Equipment specifications and functions:

Processing specification: φ1.0-2.5mm, length 200mm-2500mm; length can be customized

Beat: 1 out of 4. 7-9s /second;

Voltage: three-phase four wire (380 + n) power: 3.5kw

Overall dimension: 3800x850x1800mm; weight: 1350kg

Function: CNC system controls the movement of the whole machine, the length can be set at will, the six working modes can be switched at will, and the peeling length and the size of flower can be adjusted;

(customizable)
